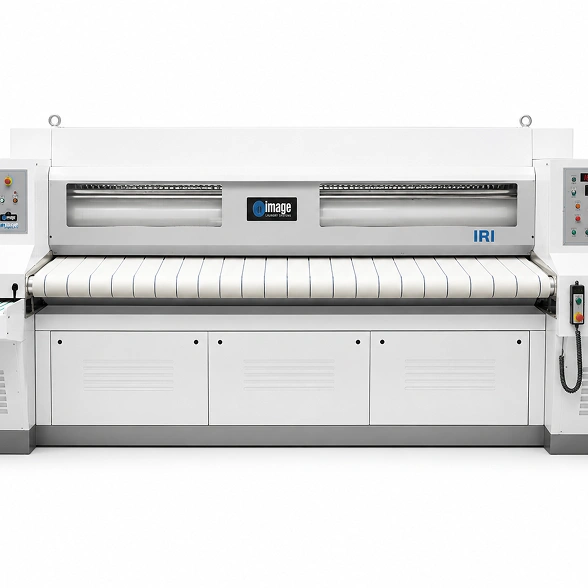

1 Roll X 1200mm Dia Industrial Deep Chest Flatwork Ironer
The Image IRI-1200x3000 is an industrial deep chest flatwork ironer with a 1200 mm roller diameter and 3000 mm working width, engineered for central laundries and large industrial operations requiring the highest throughput from a reliable, proven ironing platform. Available in 1, 2, and 3 roll configurations, it delivers ironing speeds from 5 to 16 m/min, with each additional roll multiplying the effective ironing path for significantly higher production output.
Brand : Image
Model Number : IRI-1200x3000
Specifications
- Roller Diameter1200 mm / 47.2"
- Number of Rolls1, 2, or 3
- Main Drive Motor7.5 kW / 10 hp (per roll)
- Air Flow60 Cmm / 2118.6 Cfm (per roll)
- Machine Width4520 mm / 178"
- Working Width3000 mm / 118.1"
- Speed Range5 to 16 m/min (16 to 53 ft/min)
- Circulator Motor (Thermal Oil)11 kW / 15 hp (per roll)
- Steam Pressure8.3 to 10.3 bar / 120 to 150 psi
- Power Source220/380/415V / 50 or 60 Hz / 3Ph
