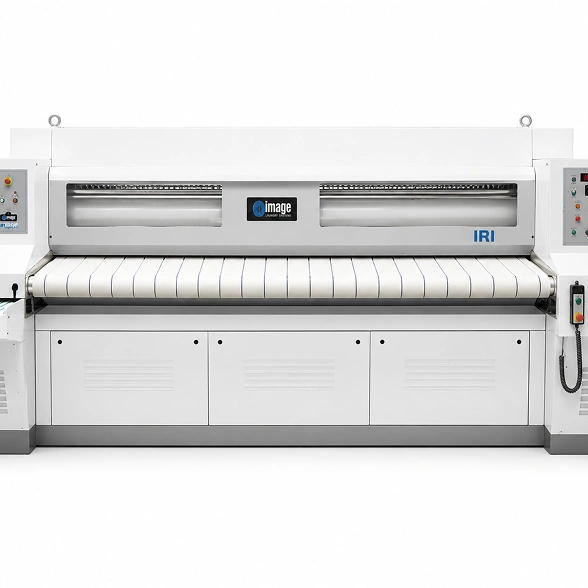

Image IRI-1600x3000 deep chest ironer showing 1600 mm roller, high-polished chest, and control panel with digital temperature display

1 Roll x 1600mm Dia Industrial Deep Chest Flatwork Ironer

The Image IRI-1600x3000 is an industrial deep chest flatwork ironer with the largest 1600 mm roller diameter in the IRI series, built for the most demanding central laundries and large industrial operations where maximum throughput and finish quality are both critical. Available as a single roll configuration with a 3000 mm working width, it delivers ironing speeds from 6 to 30 m/min and handles the heaviest institutional linen loads with consistent, thorough heat penetration across the enlarged chest surface.

Brand : Image

Model Number : IRI-1600x3000

enquire now Download brochure

Specifications

Roller Diameter1600 mm / 62.9"
Number of Rolls1
Main Drive Motor15 kW / 20 hp
Air Flow90 Cmm / 3177.9 Cfm
Machine Width4530 mm / 178.3"

Working Width3000 mm / 118.1"
Speed Range6 to 30 m/min (20 to 98 ft/min)
Circulator Motor (Thermal Oil)22 kW / 30 hp
Steam Pressure8.3 to 10.3 bar / 120 to 150 psi
Power Source220/380/415V / 50 or 60 Hz / 3Ph

1 Roll x 1600mm Dia Industrial Deep Chest Flatwork Ironer
