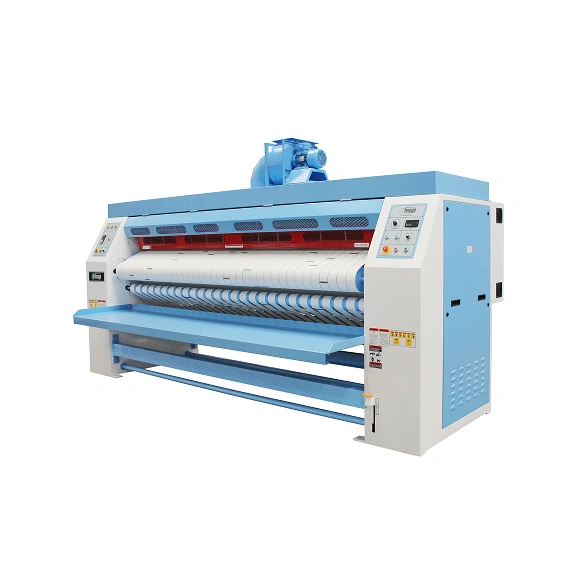

1 Roll X 356mm Dia Compact Size Industrial Flatwork Ironer
Wide-Format Ironer Designed For Operations Where Speed And Finish Quality Must Go Hand In Hand. 2550mm Working Width Processes Large Linen Items In A Single Pass, Significantly Cutting Operator Time. Hard-Chrome Cylinder Backed By Heavy-Duty Lubricated Bearings Delivers Uniform Heat Distribution Across The Full Roll Width. Nomex Belts Prevent Moisture Absorption While Protecting Feed Components Over Extended Use. Variable Speed Inverter With Soft-Start Reduces Mechanical Stress For Longer Component Life. Full Canopy With Powerful External Blower Keeps Moisture Levels In Check During High-Volume Runs.
Brand : Image
Model Number : IRC-14x100
Specifications
- Roller Diameter356mm (14")
- Speed Range1.8 - 11 M/min
- Machine Height1744mm (68.7")
- Air Flow30.6 Cmm (1080 Cfm)
- Net Weight (Steam)853 kg (1881 lbs)
- Working Width2550mm (100")
- Machine Depth670mm (26.4")
- Drive Motor0.37 kW (0.5 HP)
- Steam Consumption28.17 kg/hr
