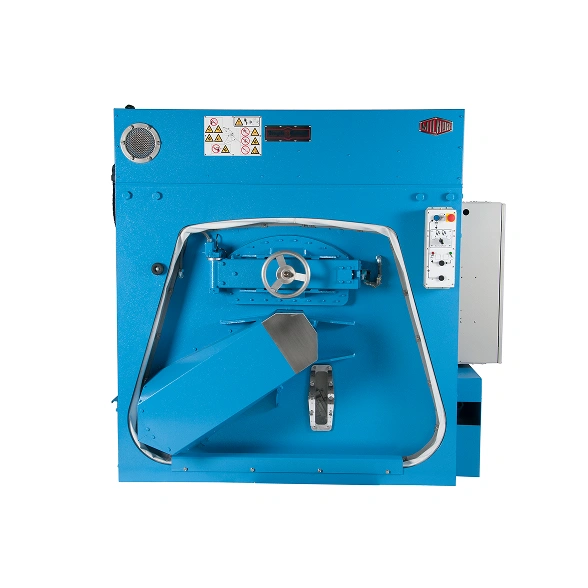

100 kg STAPH-GUARD® Washer-Extractor

The 42044 SR2 STAPH-GUARD® washer-extractor combines advanced infection control technology with proven Milnor engineering. The split pocket cylinder with AUTOSPOT™ cylinder positioner ensures precise load handling and consistent results. Hydro-Cushion™ suspension utilizing spring-hydraulic units with heavy fluid damping significantly reduces objectionable vibration. The MilTouch-EX™ programmable touch screen controller with full VGA resolution offers real-time status monitoring, formula development on PC with USB upload, and intuitive fault diagnosis. Fifteen liquid chemical injection ports with optional 5-compartment supply injector provide exceptional flexibility for specialized wash protocols. Programmable overnight bath soak, individual bath temperature control, and air-operated steam injection enable precise process customization. Superior cylinder perforations and variable extraction speeds (240-710 RPM, 300-G) deliver excellent wash quality while reducing fabric wear and dryer costs. Spherical roller bearings and large cylinder perforations maximize mechanical action for superior cleaning results. Perfect for healthcare, hospitality, and specialized laundries requiring advanced infection control and contamination management.

Brand : Milnor

Capacity :  220-245 lbs (100-111 kg)

Specifications

  • Capacity220-245 lb (100-111 kg)
  • Cylinder Volume35 cu. ft. (999 L)
  • Machine Dimensions (W x D x H)89.25" x 74.25" x 82.15" (2267 x 1886 x 2087 mm)
  • Wash Speed25-35 RPM
  • Extraction Speed240-710 RPM
  • Static Weight7,751 lb (3,516 kg)
  • Water Valve Cv Rating at 72°F75 (283.9)
  • Cylinder Diameter x Depth42" x 44" (1067 x 1118 mm)
  • Cylinder Door Area224 sq. in. (1445 sq. cm)
  • Motor25 HP (18.64 kW)
  • Distribution Speed52 RPM
  • Extraction G-Force300 (for balanced loads)
  • Water Pressure Required30-65 psi (2.06-4.48 bar)
