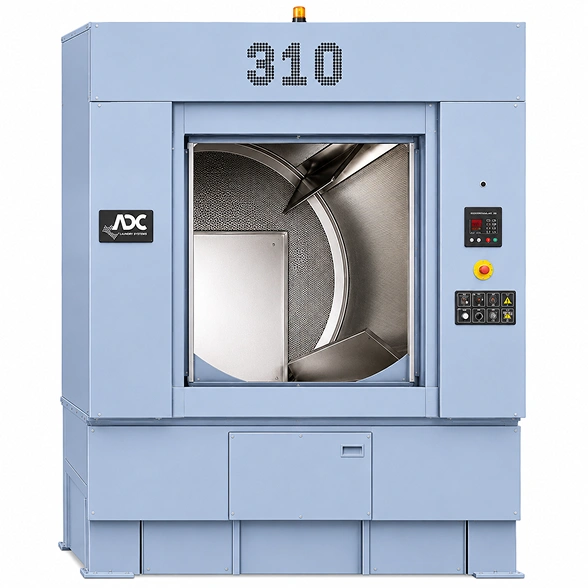

ADC AD-310 industrial dryer showing 60-inch  tumbler depth, heavy-duty gearbox, and 24-inch exhaust connection
ADC AD-310 industrial dryer showing 60-inch  tumbler depth, heavy-duty gearbox, and 24-inch exhaust connection
ADC AD-310 industrial dryer showing 60-inch  tumbler depth, heavy-duty gearbox, and 24-inch exhaust connection

140 Kg Drying Tumbler

The ADC AD-310 is a 140 Kg capacity industrial dryer built to handle the scale and pace of large institutional and commercial laundry operations processing hundreds of kilos of linen daily. Its 106.5 cu ft tumbler, driven by a 5 hp motor through a heavy-duty gearbox, delivers consistent drum rotation and reliable power transfer across extended operating hours. Computer-controlled timed and automatic drying cycles with 24-volt electronics ensure one-touch repeatability and minimal operator intervention. The self-cleaning blower system and front lint drawer maintain performance between service intervals. Available in gas and steam heat with single door, pass-through, and tilt configurations.

Brand : ADC

Model Number :  AD-310

Capacity :  140 Kg

Specifications

  • Maximum Capacity (dry weight)310 lb / 140.61 kg
  • Tumbler Depth60" / 152.40 cm
  • Tumbler/Drive Motor5 hp / 3.73 kW
  • Gas Heat Input1,125,000 Btu/hr / 283,495 kcal/hr
  • Exhaust Connection Diameter24" / 60.96 cm
  • Tumbler Diameter62-1/2" / 158.75 cm
  • Tumbler Volume106.50 cu ft / 3,015.74 L
  • Door Opening36-3/4" W x 43" H
  • Airflow (Gas, 50/60 Hz)6,500 cfm / 184.06 cmm
  • Steam Consumption1,153 lb/hr / 522.99 kg/hr
