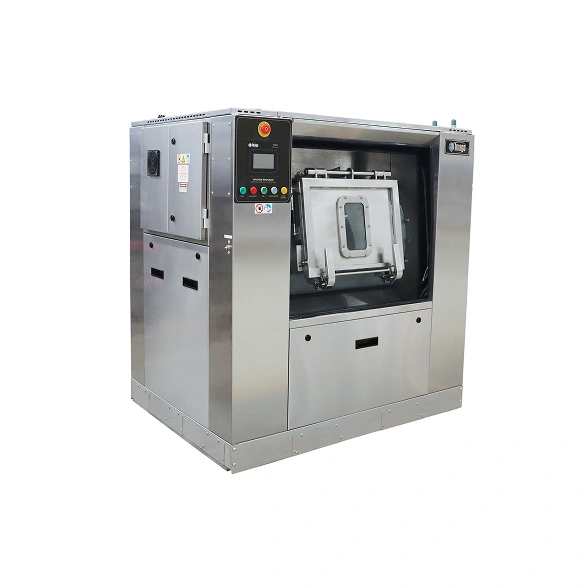

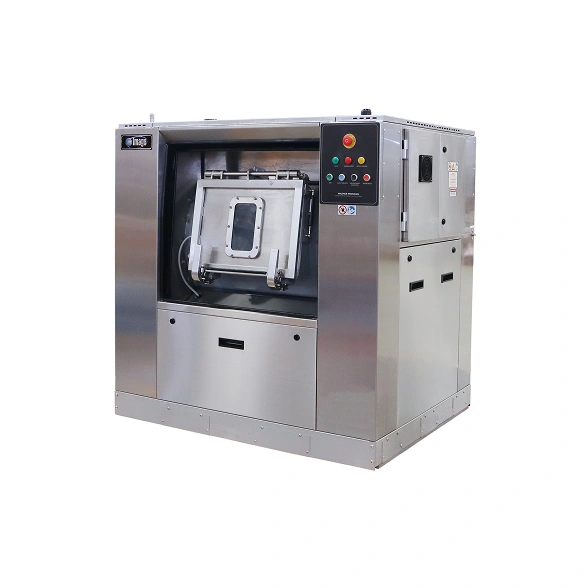

18 kg Compact Barrier Washers with Separate Load/Unload Doors

These 18 kg Compact Barrier Washers with Separate Load/Unload Doors are engineered for contamination control in healthcare and cleanroom environments where cross-contamination during garment processing cannot be tolerated. Compact stainless steel construction facilitates cleanroom integration, while variable frequency 2.2 to 3.7 HP motors deliver programmable extraction cycles on each machine. Spherical roller bearings positioned outside the wash chamber eliminate seal failure risk, and a five-compartment chemical dispenser with automatic flush cycle ensures consistent detergent dosing throughout. Spring suspension comes standard on smaller models with optional air cushion suspension available, and the IWT touch-screen controller supports multi-language programming and load-balance monitoring across all configurations.

Brand : Image

Model Number :  SB-40

Capacity :  40 lbs (18.1 kg)

Specifications

  • Capacity40 lbs (18.1 kg)
  • Basket Depth550mm (21.7")
  • Wash Speed47 RPM / Extract 1: 380 RPM (52.4-G) / Extract 2: 957 RPM (335-G)
  • Water Inlets3/4" (Hot & Cold)
  • Net Weight998 lbs (453 kg)
  • Basket Diameter650mm (25.6")
  • Motor2.2 HP (3 kW)
  • Machine Dimensions1345 x 1121 x 1467mm (53" x 44.1" x 57.8")
  • Drain3" (76.2mm) outlet, 724 L/min
  • Electrical Power12 kW
