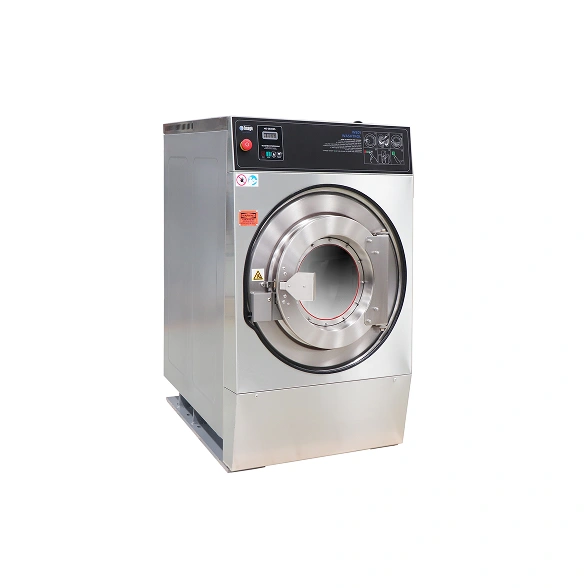

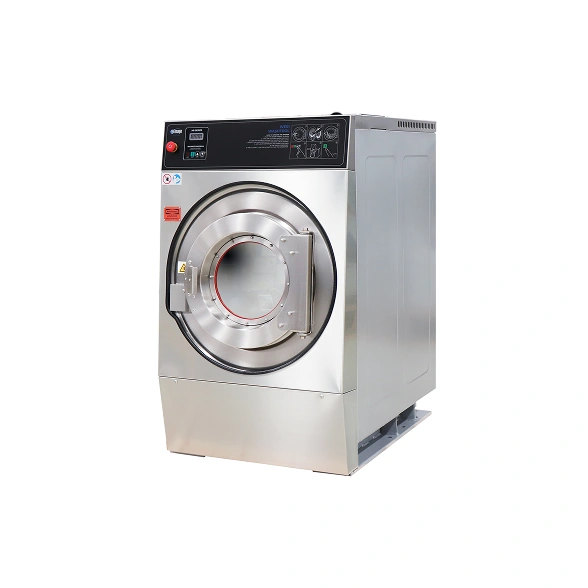

18 kg Mid-Range Industrial Washer
This 18 kg Mid-Range Industrial Washer is a hardmount washer-extractor built for facilities scaling up laundry capacity without overextending their budget. Permanently lubricated oversized ball bearings in a cast iron housing deliver consistent performance across extended daily use, while a silicon door gasket seals to the shell every cycle and an electro-mechanical interlock prevents unsafe access during operation. A totally enclosed variable frequency motor paired with a 30-program microprocessor manages all wash parameters including temperature, water level, and chemical dosing on this mid-range industrial machine.
Brand : Image
Model Number : HE-40
Capacity : 40 lbs (18.1 kg)
Specifications
- Machine Dimensions (W×D×H)785 × 1135 × 1335 mm
- Basket Volume0.18 cu.m (6 cu.ft)
- Motor Size2.2 kW (3 HP)
- Number of Drains1
- Steam Consumption23.5 kg/hr
- Basket Diameter680 mm (26.8")
- Door Opening Diameter365 mm (14.4")
- Extraction Speed484 RPM (150 G-Force)
- Drain Capacity310 liters/min
- Net Weight437 kg (963 lbs)
