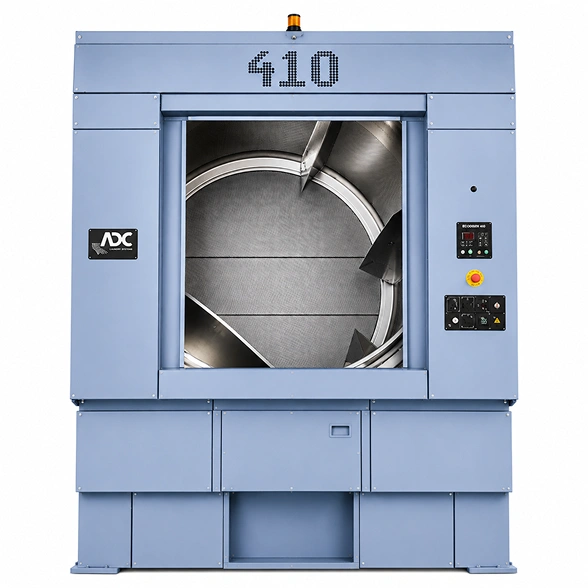

ADC AD-410 industrial dryer showing 68-inch  tumbler, 28-inch exhaust connection, and computer control panel
ADC AD-410 industrial dryer showing 68-inch  tumbler, 28-inch exhaust connection, and computer control panel
ADC AD-410 industrial dryer showing 68-inch  tumbler, 28-inch exhaust connection, and computer control panel

186 Kg Drying Tumbler

The ADC AD-410 is a 186 Kg capacity industrial dryer engineered for the most demanding large-scale laundry operations, including hospital central laundries, large hotel groups, and industrial processing facilities. Its 143 cu ft tumbler, powered by a 7.5 hp motor through a heavy-duty gearbox, delivers unmatched volume per cycle with consistent drum speed and reliable power transfer. At 9,200 cfm airflow through a 28" exhaust connection, drying is fast and thorough even at full load. The ADC computer control system supports preprogrammed timed and automatic moisture-sensing cycles, while the self-cleaning blower and front lint drawer reduce maintenance requirements between service intervals. Available in gas and steam heat with single door, pass-through, and tilt configurations.

Brand : ADC

Model Number :  AD-410

Capacity :  186 Kg

Specifications

  • Maximum Capacity (dry weight)186 Kg
  • Tumbler Depth66-3/8" / 168.61 cm
  • Tumbler/Drive Motor7-1/2 hp / 5.59 kW
  • Gas Heat Input1,400,000 Btu/hr / 352,794 kcal/hr
  • Exhaust Connection Diameter28" / 71.12 cm
  • Tumbler Diameter68-3/4" / 174.63 cm
  • Tumbler Volume143 cu ft / 4,049.31 L
  • Door Opening38" W x 50" H
  • Airflow (Gas, 50/60 Hz)9,200 cfm / 260.52 cmm
  • Steam Consumption1,257 lb/hr / 570.17 kg/hr
