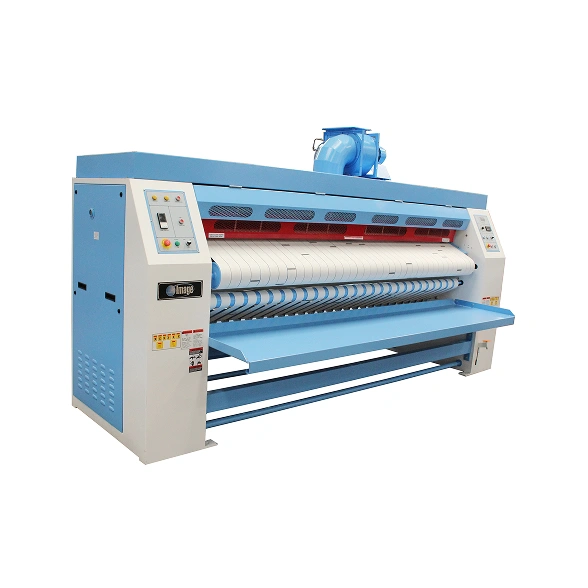

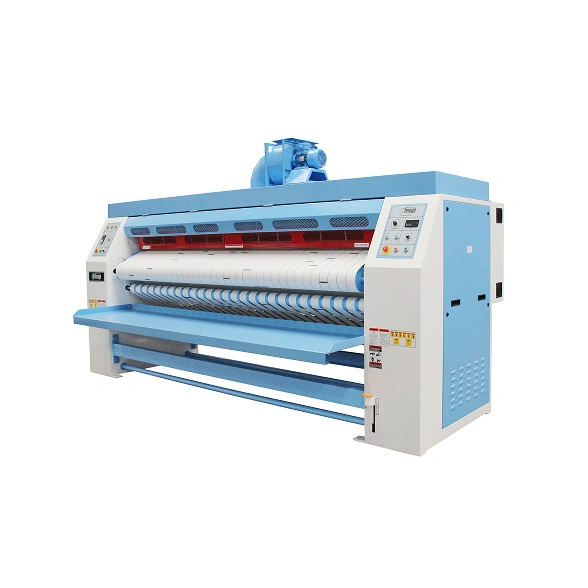

2 Rolls x 1200mm Dia Heavy-Duty Large-Drum Flatwork Ironer

Flagship Model Of The IRI Series, Purpose-Built For Enterprise Laundries That Require The Highest Level Of Flatwork Finishing Performance. 1600mm Drum Diameter Provides The Deepest Ironing Chest In The Range, Maximising Heat Contact Time And Producing Superior Linen Quality At High Speeds. Heavy-Duty Gear Reducers And Independent Suction Fans Per Roll Handle Continuous Multi-Shift Operation Without Performance Drop. Pneumatically Controlled Compression With Automatic Pressure Adjustment Maintains Uniform Ironing Pressure Across The Full 3000mm Width. Compatible With Feeding And Folding Equipment For Fully Automated Linen Finishing Lines.

Brand : Image

Model Number :  IRI-1600x3000

Specifications

  • Number of Rolls2
  • Working Width3000mm (118.1")
  • Machine Width4530mm (178.3")
  • Blower Motor1.1 kW (1.5 HP) x2
  • Steam Consumption391 kg/hr
  • Roller Diameter1600mm (62.9")
  • Speed Range6-30 M/min
  • Drive Motor18.5 kW (25 HP)
  • Air Flow60 Cmm (2118.6 Cfm)
  • Net Weight17370 kg (38290 lbs)
