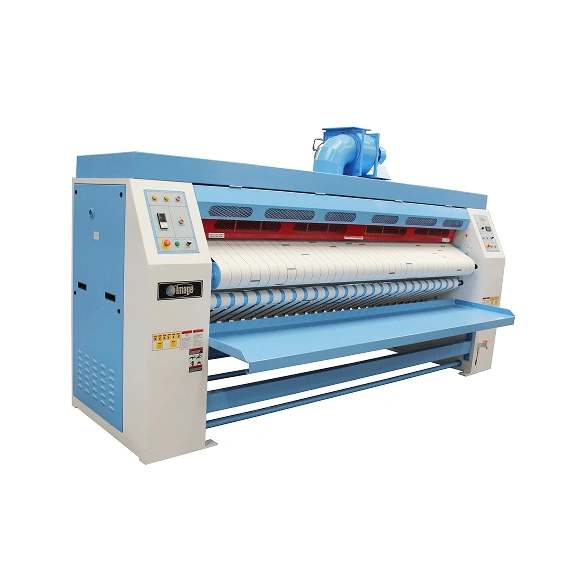

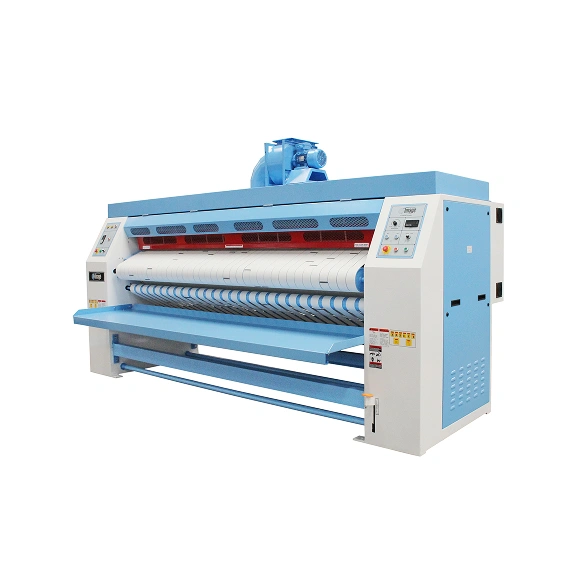

2 Rolls X 1200mm Dia High-Output Flatwork Ironer

Dual-Roll Ironer With Extended Width Designed For Facilities Where Linen Turnaround Time Is Critical. 1200mm Drum Diameter Provides A Deep Ironing Chest That Maximises Contact Time And Finish Quality Per Pass. Heated Gap Pieces Between Rolls Eliminate Cold Spots And Ensure Uninterrupted Heat Transfer Across The Full Surface. Independent Suction Fans Per Roll With Efficient Steam Trap And Piping System Reduce Energy Waste During Continuous Operation. Emergency Stops And Safety Finger Guard Across Full Roll Width Protect Operators During High-Speed Runs.

Brand : Image

Model Number :  IRI-1200x3300

Specifications

  • Number of Rolls2
  • Working Width3300mm (130")
  • Machine Width4441mm (174.84")
  • Blower Motor1.1 kW (1.5 HP) x2
  • Steam Consumption608.6 kg/hr
  • Roller Diameter1200mm (47.2")
  • Speed Range5-50 M/min
  • Drive Motor18.5 kW (25 HP)
  • Air Flow60 Cmm (2118.6 Cfm)
  • Net Weight12690 kg (27980 lbs)
