22 kg Drying Tumbler

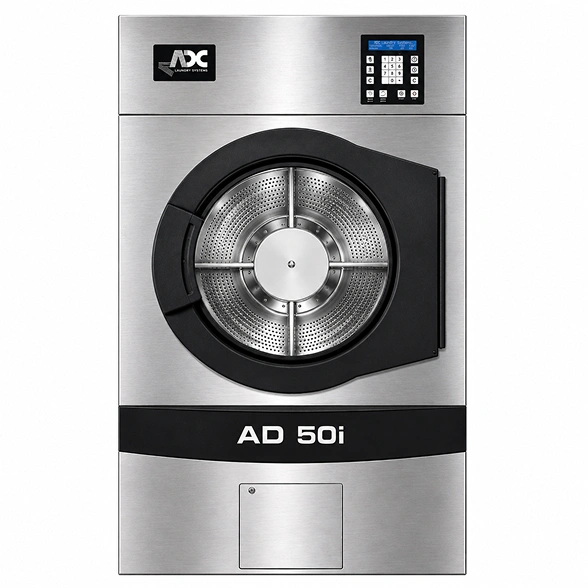

The ADC AD-50i is a 22 Kg capacity industrial on-premise dryer from the i-Series, engineered for facilities that need reliable mid-volume drying performance without a large footprint. The IMC (Intuitive Micro Control) system integrates all aspects of the drying cycle into a single one-touch interface, reducing operator dependency and improving consistency across every load. Variable drum speed, trans-axial airflow, and a pre-heat system work in tandem to shorten dry times while maintaining fabric integrity. Built on a steel-welded cabinet with a simplified inverter drive and S.A.F.E. sensor-activated fire extinguishing technology, the AD-50i is designed for years of trouble-free operation. Slim enough to pass through a standard 36" door and available in gas, steam, and electric heat variants.
Brand : ADC
Model Number : AD-50i
Capacity : 22 Kg
Specifications
- Maximum Capacity (dry weight)50 lb / 22.67 kg
- Tumbler Depth37-1/2" / 95.25 cm
- Tumbler/Drive Motor1 hp / 0.75 kW
- Door Opening Diameter27" / 68.58 cm
- Airflow (Gas, 60 Hz)850 cfm / 24.06 cmm
- Tumbler Diameter32-3/4" / 83.18 cm
- Tumbler Volume18.3 cu ft / 518.19 L
- Cabinet Dimensions (W x D x H)34-1/2" x 49-3/8" x 73-5/8"
- Gas Heat Input125,000 Btu/hr / 31,500 kcal/hr
- Exhaust Connection Diameter8" / 20.32 cm
