Supershine
Washer Extractor
Washer Extractor
Washer Extractor

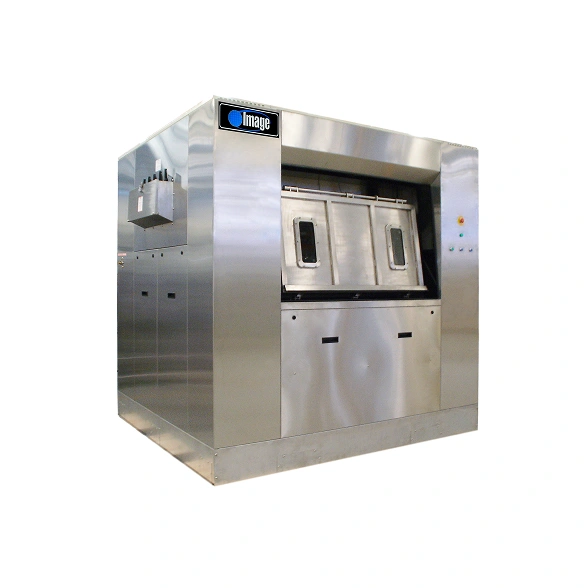

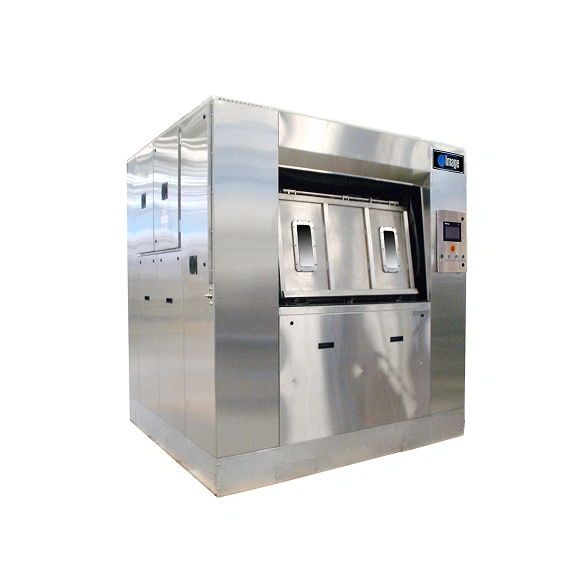

220 kg Maximum-Capacity Barrier Washer

When volume is non-negotiable, the SB-485 delivers. Designed for central industrial laundry hubs and large hospital complexes processing thousands of kilograms daily, this machine brings dual 25 HP inverter motors that power a 2.2 cu.m drum to 330G extraction, dramatically cutting drying time and energy costs downstream. The 450mm x 760mm dual-door system enforces complete separation between soiled intake and clean discharge, critical for infection control compliance. Four independent drain outlets with a combined capacity of 1866 litres/min mean near-zero idle time between batches. Freestanding construction with air cushion suspension eliminates vibration transfer to sensitive facility infrastructure. The IWT controller handles complex multi-program scheduling across departments with full USB integration.

Brand : Image

Model Number :  SB-485

Capacity :  485 lbs (220 kg)

Specifications

  • Machine Dimensions (W×D×H)2617 × 2154 × 2621 mm
  • Door Opening (W×L)450 × 760 mm
  • Motor Size18.5 kW (25 HP)
  • Number of Drains2
  • Steam Consumption640 kg/hr
  • Basket Volume2.2 cu.m (78 cu.ft)
  • Number of Motors2
  • Extraction Speed600 RPM (330 G-Force)
  • Drain Capacity1866 liters/min
  • Net Weight5097 kg (11237 lbs)
