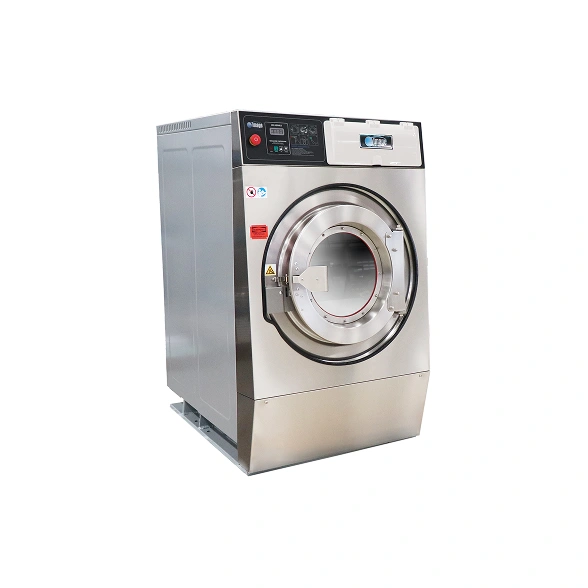

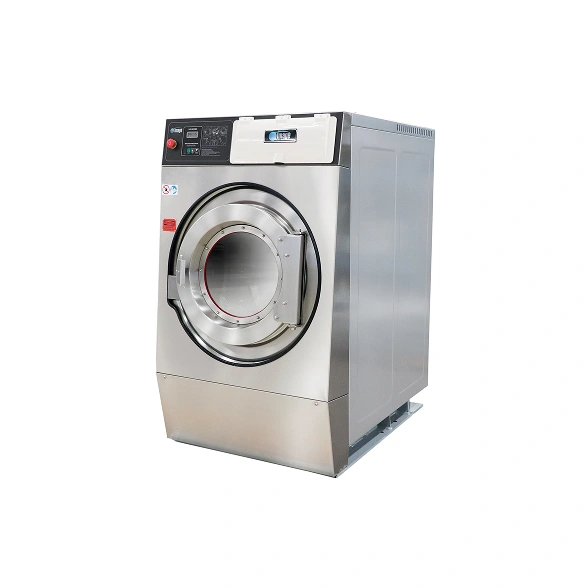

36 kg Heavy-Duty Economy Washer

This 36 kg Heavy-Duty Economy Washer is a hardmount washer-extractor built for facilities running multiple shifts without compromise on performance. A computer-analyzed solid mount frame with protective powder coating resists corrosion and extends machine life, while an oversized stainless steel door opens 180 degrees with a secure silicon gasket and electro-mechanical interlock for safe, consistent operation. Rugged cast iron bearing housing with oversized permanently lubricated ball bearings requires zero routine servicing on this heavy-duty economy machine, and a variable frequency drive controls wash speeds, temperature, water inlets, and drain functions through a 30-program microprocessor. A front-mounted supply dispenser with automatic flush supports up to four external liquid connections per cycle.

Brand : Image

Model Number :  HE-80

Capacity :  80 lbs (36.3 kg)

Specifications

  • Machine Dimensions (W×D×H)1050 × 1247 × 1716 mm
  • Basket Volume0.36 cu.m (13 cu.ft)
  • Motor Size5.5 kW (7.5 HP)
  • Number of Drains1
  • Steam Consumption56.3 kg/hr
  • Basket Diameter920 mm (36.2")
  • Door Opening Diameter510 mm (20.1")
  • Extraction Speed540 RPM (150 G-Force)
  • Drain Capacity581 liters/min
  • Net Weight740 kg (1631 lbs)
