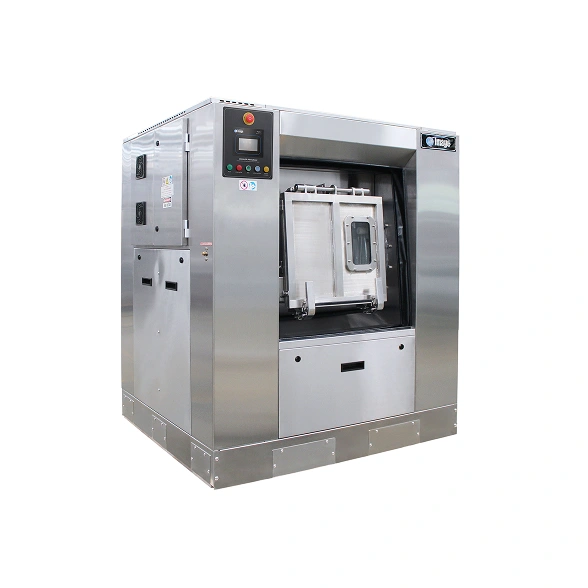

36 kg Mid-Capacity Barrier Washer

Mid-capacity barrier washer engineered for clinical and pharmaceutical environments. Isolated load/unload door design prevents contamination crossover during processing. Stainless steel basket and hinges withstand sterilization chemical exposure. Variable frequency 7.5 HP inverter motor delivers aggressive 350-G extraction with load-balance monitoring. Spherical roller bearings positioned outside wash chamber prevent corrosion damage from seal leaks. Spring suspension standard; optional air cushion suspension available for vibration-sensitive cleanrooms. IWT microprocessor control supports five-language programming and automated chemical dosing.

Brand : Image

Model Number :  SB-80

Capacity :  80 lbs (36.3 kg)

Specifications

  • Capacity80 lbs (36.3 kg)
  • Basket Depth750mm (29.5")
  • Door Opening300mm (11.81") x 515mm (20.28")
  • Motor5.5 HP (7.5 kW), single variable frequency inverter
  • Distribution Speed67 RPM
  • Extract 2825 RPM (350-G)
  • Drain4" (102mm) outlet capacity 1,639 L/min
  • Net Weight1,341 lbs (608 kg)
  • Basket Diameter790mm (31.1")
  • Basket Volume0.37 cu. ft. (13 L)
  • Machine Dimensions (W x D x H)1629 x 1279 x 1681mm (64.1" x 50.4" x 66.2")
  • Wash Speed43 RPM
  • Extract 1426 RPM (80.1-G)
  • Water Inlets3/4" (Hot & Cold)
  • Steam Inlet3/4" NPT, 8.6 bar pressure
  • Electrical Power24 kW
