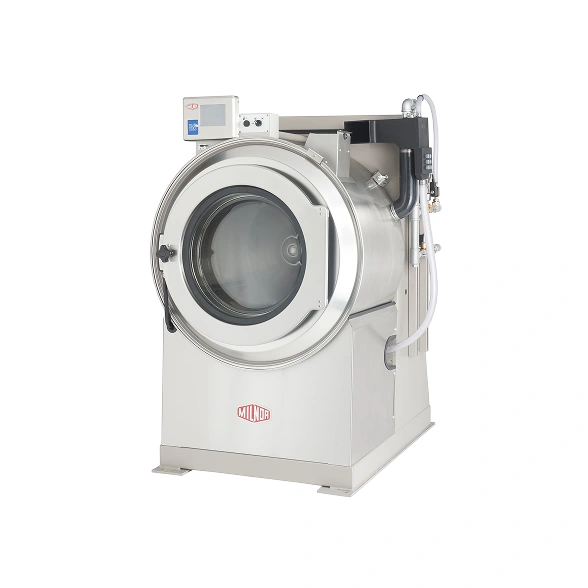

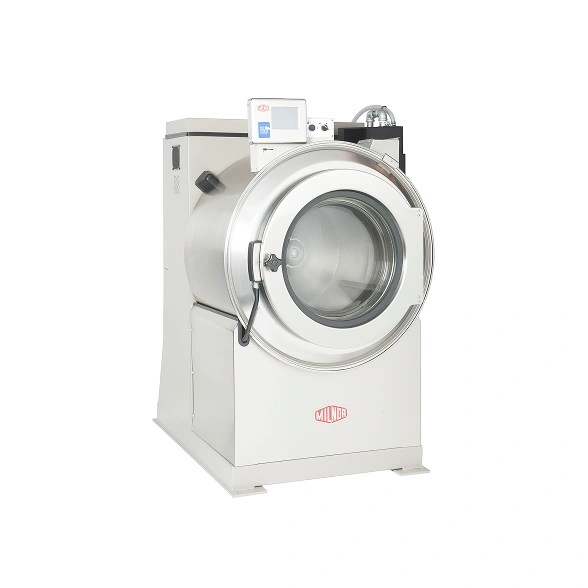

36 kg Rigid Mount Washer-Extractors with Touch Screen
The 36021 V5Z delivers dependable washing performance in the most compact rigid-mount configuration. Engineered with RinSave® water-saving technology and large cylinder perforations, it optimizes rinsing efficiency while reducing water consumption. The MilTouch™ touch screen controller features full VGA resolution and USB formula upload capability, allowing operators to develop and customize wash cycles on a PC. Advanced mechanical action with tall lifting ribs ensures superior cleaning results across diverse fabrics. With variable extraction speeds (200-541 RPM, 150-G extraction), it efficiently removes moisture while accommodating delicate textiles. Solid industrial frame with rigid-mount construction provides stable, vibration-free operation in minimal space. Optional prison package enhances flexibility for correctional and specialized facilities. Tapered roller bearings and large cylinder perforations maximize mechanical action for superior cleaning. Perfect for small medical facilities, boutique properties, correctional facilities, and laundries with severe space limitations seeking reliable, efficient solutions.
Brand : Milnor
Model Number : 36021 V5Z
Capacity : 80 lbs (36 kg)
Specifications
- Capacity80 lb (36 kg)
- Cylinder Volume12.37 cu. ft. (350 L)
- Machine Dimensions (W x D x H)44.07" x 55.15" x 67" (1119 x 1401 x 1702 mm)
- Wash Speed25-45 RPM
- Extraction Speed200-541 RPM
- Static Weight2,171 lb (985 kg)
- Water Valve Cv Rating at 72°F6.5 (24)
- Cylinder Diameter x Depth36" x 21" (914 x 533 mm)
- Door Opening21.69" (551 mm)
- Motor5 HP (3.72 kW)
- Distribution Speed65 RPM
- Extraction G-Force150 (for balanced loads)
- Water Pressure Required10-75 psi (0.68-5.1 bar)
