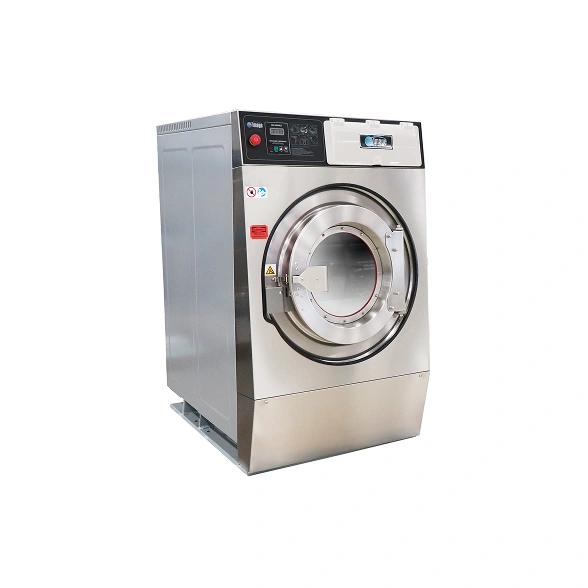

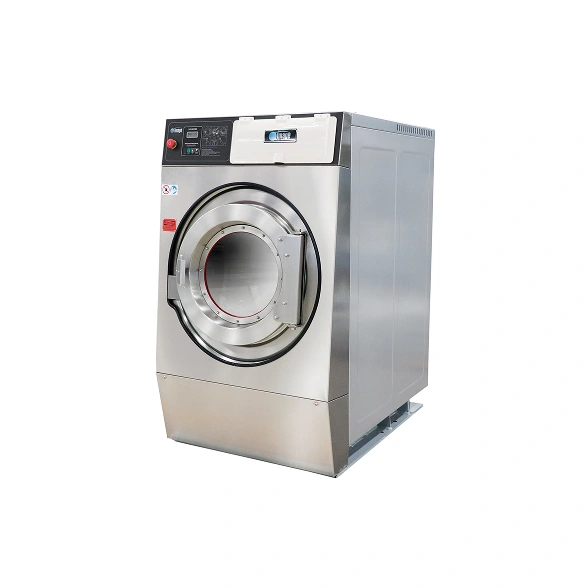

45 kg High-Capacity Economy Washer

This 45 kg High-Capacity Economy Washer is a hardmount washer-extractor engineered to handle the highest volumes in its class without inflating operating budgets. Permanently lubricated oversized ball bearings inside a rugged cast iron housing deliver extended service life with no routine maintenance required, while a silicon door gasket seals completely every cycle and an electro-mechanical interlock prevents unsafe operation. A totally enclosed single motor paired with a variable frequency drive eliminates clutches, contactors, and gear reducers on this high-capacity economy machine, and a 30-program microprocessor tracks and controls all wash parameters including water level, temperature, drain timing, and chemical dosing. A front-mounted dispenser automatically flushes chemicals into each cycle across four external liquid supply connections.

Brand : Image

Model Number :  HE-100

Capacity :  100 lbs (45.4 kg)

Specifications

  • Machine Dimensions (W×D×H)1050 × 1388 × 1723 mm
  • Basket Volume0.45 cu.m (16 cu.ft)
  • Motor Size5.5 kW (7.5 HP)
  • Number of Drains1
  • Steam Consumption56.3 kg/hr
  • Basket Diameter920 mm (36.2")
  • Door Opening Diameter510 mm (20.1")
  • Extraction Speed540 RPM (150 G-Force)
  • Drain Capacity581 liters/min
  • Net Weight875 kg (1930 lbs)
