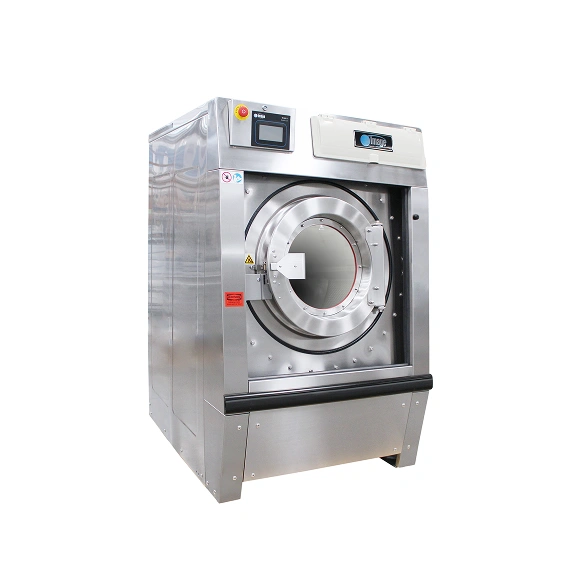

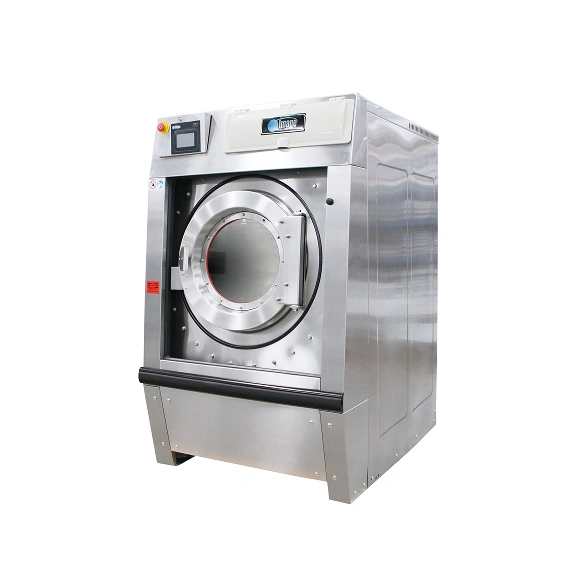

45 kg Washer-Extractor
The Image SP Series delivers high-speed extraction across eleven softmount models ranging from 30 to 185 lbs capacity, with freestanding suspended designs that absorb vibration without expensive foundation work. A single-motor inverter drive with variable frequency control reduces energy consumption while enabling high G-force extraction, and solid cast-iron bearing housing with dual-lip seals ensures long operational life on every softmount machine in the range. The advanced IWT touch-screen controller with Image Washer Software supports programmable wash patterns across five languages, and a large 165-degree door opening simplifies loading throughout the day. Optional steam or electric heating and 1 or 5-compartment supply dispensers make the SP Series a reliable, energy-efficient choice for small to medium hospitality, healthcare, and on-premise laundries.
Brand : Image
Model Number : SP-100
Capacity : 100 lbs (45.4 kg)
Specifications
- Capacity100 lbs (45.4 kg)
- Basket Depth683mm (26.9")
- Door Opening Diameter510mm (20.1") / Height: 740mm (29.1")
- Motor7.5 HP (10 kW), single, with variable frequency inverter
- Distribution Speed62 RPM
- Extract 2817 RPM (350-G)
- Drain76.2mm (3") capacity 654 L/min (173 gal/min)
- Electrical Power36 kW standard
- Basket Diameter920mm (36.2")
- Basket Volume0.45 cu. ft. (16 L)
- Machine Dimensions (W x D x H)1203mm x 1441mm x 1809mm (47.4" x 56.7" x 71.2")
- Wash Speed39 RPM
- Extract 1309 RPM (50-G)
- Water Inlets1" (Hot & Cold)
- Net Weight1,003 lbs (454.5 kg)
