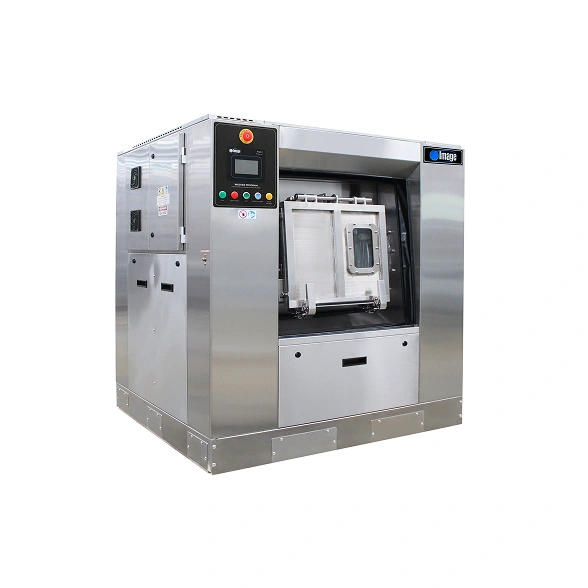

45 kg Standard-Capacity Barrier Washer

A standard-capacity industrial barrier washer designed for high-volume hospital and cleanroom applications where hygienic processing is critical. Dual load/unload door design maintains strict contamination protocols during garment processing. Stainless steel basket and hinges resist aggressive institutional disinfectants. A variable frequency 10 HP inverter motor delivers consistent 350-G extraction with load-balance monitoring. Spherical roller bearings positioned outside the wash chamber prevent corrosion from chemical exposure. Spring suspension is standard on smaller models, with air cushion optional for vibration-sensitive cleanrooms. The IWT microprocessor control supports programmable wash cycles with automatic chemical injection.

Brand : Image

Model Number :  SB-100

Capacity :  100 lbs (45.4 kg)

Specifications

  • Capacity100 lbs (45.4 kg)
  • Basket Depth930mm (36.6")
  • Door Opening300mm (11.81") x 600mm (23.62")
  • Motor7.5 HP (10 kW), single variable frequency inverter
  • Distribution Speed62 RPM
  • Extract 2825 RPM (350-G)
  • Drain4" (102mm) outlet capacity 1,639 L/min
  • Net Weight1,487 lbs (675 kg)
  • Basket Diameter790mm (31.1")
  • Basket Volume0.46 cu. ft. (16 L)
  • Machine Dimensions (W x D x H)1809 x 1279 x 1681mm (71.2" x 50.4" x 66.2")
  • Wash Speed43 RPM
  • Extract 1426 RPM (80.1-G)
  • Water Inlets1" (Hot & Cold)
  • Steam Inlet3/4" NPT, 8.6 bar pressure
  • Electrical Power36 kW
