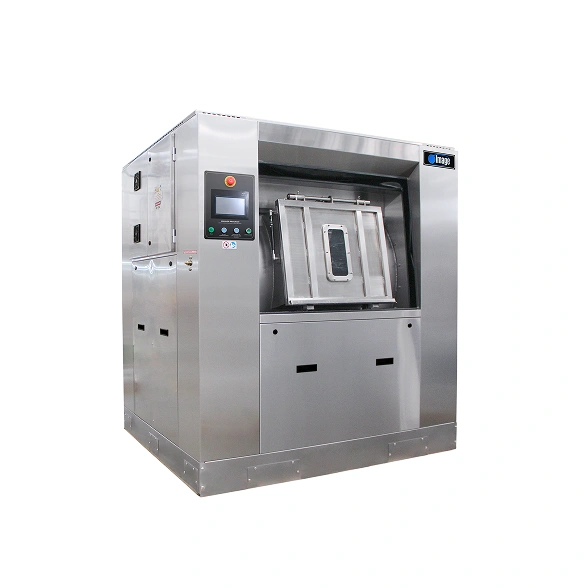

70 kg Heavy-Duty Barrier Washer
A softmount barrier washer designed for healthcare and clean room applications where hygienic operation is essential. Separate load and unload door architecture maintains strict contamination protocols. Stainless steel basket with 400mm x 600mm door opening enables rapid batch cycling. A 7.5 HP variable frequency inverter motor achieves 300-G extraction force. Bearings positioned outside the wash solution prevent corrosion. Triple drain configuration reduces discharge times. The IWT touch screen controller offers automatic drum positioning and USB program transfer. Spring suspension is standard, requiring no foundation modifications.
Brand : Image
Model Number : SB-155
Capacity : 155 Lbs (70.3 Kg)
Specifications
- Machine Width1707 mm (67.2")
- Machine Height2124 mm (83.6")
- Basket Depth790 mm (31.1")
- Drum Compartments3
- Door Opening Length600 mm (23.62")
- Wash Speed39 RPM (0.8 G-Force)
- Extract 1286 RPM (48.8 G-Force)
- Net Weight2476 kg (5459 lbs)
- Machine Depth1596 mm (62.8")
- Basket Diameter1069 mm (42.1")
- Basket Volume0.71 cu.m (25 cu.ft)
- Door Opening Width400 mm (15.75")
- Number of Motors2
- Distribution Speed69 RPM (1.7 G-Force)
- Extract 2710 RPM (350 G-Force)
