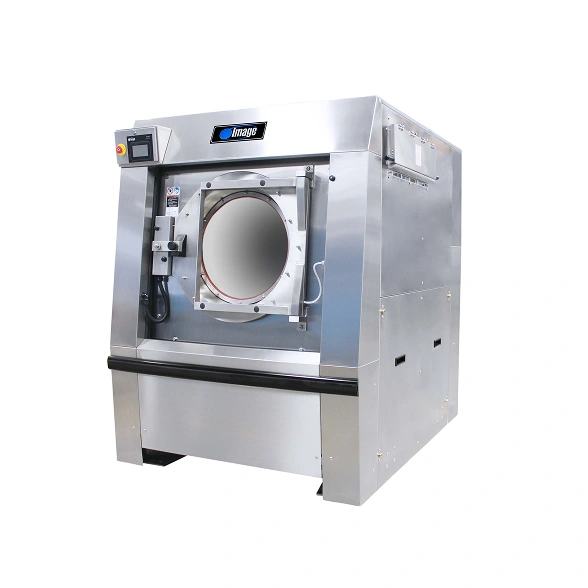

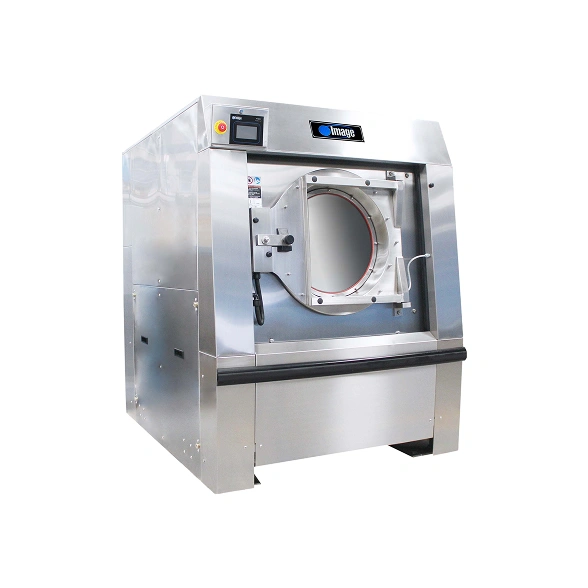

70 kg Washer-Extractors
The SP-155 is a softmount washer-extractor bridging the gap between smaller and larger capacity machines with a 1092mm basket and 0.68 cu. ft. volume. An advanced variable frequency inverter motor delivering 11 HP and 15 kW achieves aggressive 350-G extraction with programmable speed control, while solid cast-iron bearing housing ensures extended operational life with minimal maintenance on this softmount machine. A 5-degree tilt-back cylinder geometry stabilises loads during extraction, and an oversized 635mm door opening at ergonomic height streamlines loading and unloading workflows. The IWT microprocessor-based controller supports USB formula transfer and five-language configuration, and freestanding suspension absorbs vibration without floor preparation for flexible installation across diverse facility layouts.
Brand : Image
Model Number : SP-155
Capacity : 155 lbs (70.3 kg)
Specifications
- Capacity155 lbs (70.3 kg)
- Basket Depth724mm (28.5")
- Door Opening635mm (25") diameter / 830mm (32.7") height
- Motor11 HP (15 kW), single-phase variable frequency drive
- Distribution Speed64 RPM
- Extract 2750 RPM (350-G)
- Drain4" (101.6mm) outlet, 1,271 L/min capacity
- Electrical Power48 kW
- Basket Diameter1092mm (43")
- Basket Volume0.68 cu. ft. (24 L)
- Machine Dimensions (W x D x H)1440 x 1872 x 1830mm (56.7" x 73.7" x 72")
- Wash Speed36 RPM
- Extract 1360 RPM (80-G)
- Water1" NPT hot, cold, additional inlet
- Net Weight1,943 lbs (881 kg)
