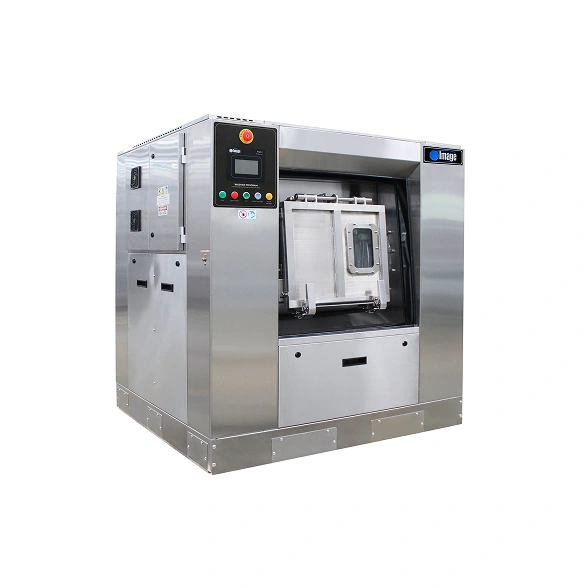

70 kg Large-Capacity Barrier Washer
Large-capacity barrier washer designed for high-throughput hospital and surgical garment processing. Dual load/unload door architecture maintains strict contamination protocols across shift operations. Stainless steel basket and oversized door opening (400mm x 600mm) facilitate rapid batch cycling. Variable frequency 7.5 HP inverter motor with load-balance monitoring achieves consistent 350-G extraction. Spherical roller bearings positioned outside wash solution prevent chemical corrosion. Triple drain configuration reduces discharge times significantly. IWT microprocessor with automatic drum positioning eliminates manual operator intervention. Optional air cushion suspension available for sensitive cleanroom vibration requirements.
Brand : Image
Model Number : SB-150
Capacity : 155 lbs (70.3 kg)
Specifications
- Capacity155 lbs (70.3 kg)
- Basket Depth790mm (31.1")
- Door Opening400mm (15.75") x 600mm (23.62")
- Motor5.5 HP (7.5 kW), single variable frequency inverter
- Distribution Speed69 RPM
- Extract 2710 RPM (350-G)
- DrainDual 4" (102mm) outlets capacity 1,733 L/min
- Net Weight2,256 lbs (1,023 kg)
- Basket Diameter1069mm (42.1")
- Basket Volume0.71 cu. ft. (25 L)
- Machine Dimensions (W x D x H)1707 x 1596 x 2124mm (67.2" x 62.8" x 83.6")
- Wash Speed39 RPM
- Extract 1286 RPM (48.8-G)
- Water Inlets1.25" (Hot & Cold)
- Steam Inlet1" NPT, 8.6 bar pressure
- Electrical Power48 kW
