77 Kg Drying Tumbler

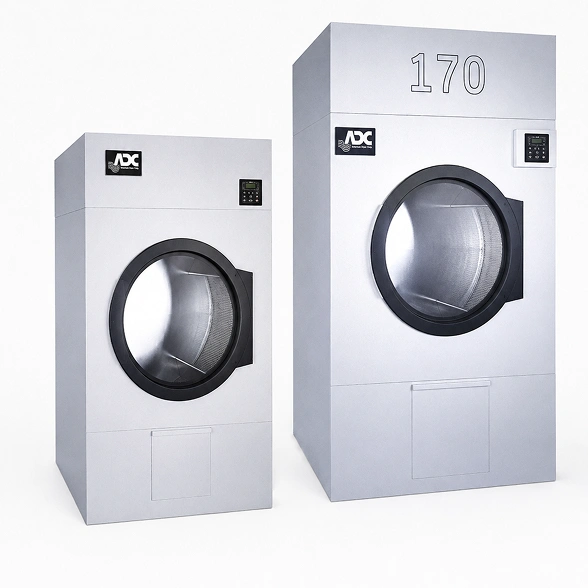

The ADC AD-170 is a 77 Kg capacity industrial on-premise dryer representing the highest capacity model in the ADC on-premise series, engineered for large hospitals, industrial laundries, and high-volume hospitality operations. Its 51.20 cu ft tumbler volume and 3,700 cfm airflow at 60 Hz ensure rapid processing of the heaviest linen loads in a single cycle. The 18" exhaust connection and 126 kW electric oven option accommodate high-power facility requirements, while an 18" gas exhaust and steam consumption of 725 lb/hr reflect the scale of its operation. Available in gas, electric, and steam heat variants.
Brand : ADC
Model Number : AD-170
Capacity : 77 Kg
Specifications
- Maximum Capacity (dry weight)77 Kg
- Tumbler Depth42-1/2" / 107.95 cm
- Tumbler Motor1 hp / 0.75 kW
- Door Opening Diameter31-3/4" / 79.69 cm
- Airflow (Gas/Electric, 60 Hz)3,700 cfm / 104.8 cmm
- Tumbler Diameter51-1/2" / 76.2 cm
- Tumbler Volume51.20 cu ft / 1,449.82 L
- Cabinet Dimensions (W x D x H)55-1/2" x 62-1/2" x 100" (gas)
- Gas Heat Input550,000 Btu/hr / 138,598 kcal/hr
- Exhaust Connection (Gas)18" / 45.72 cm
