90 Kg Drying Tumbler

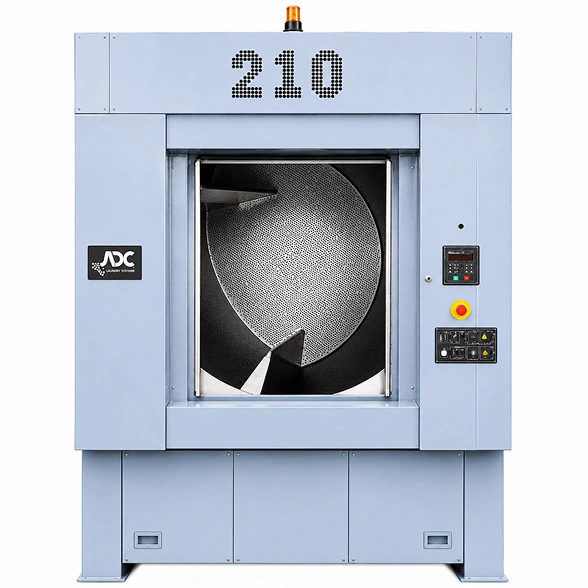

The ADC AD-210 is a 90 Kg capacity industrial dryer engineered for demanding, high-volume laundry environments in hospitals, large hotels, and institutional laundries. Its 74.5 cu ft stainless steel tumbler, driven by a 3 hp motor, handles even the heaviest linen loads with ease. The ADC computer control system combines 24-volt controls with preprogrammed timed and automatic moisture-sensing cycles for one-touch operation. A front-mounted lint drawer prevents fan clogging and eliminates the need for external lint collectors, while the self-cleaning blower extends fan and bearing life. Available in gas and steam heat with single door, pass-through, and one-way or two-way tilt configurations.
Brand : ADC
Model Number : AD-210
Capacity : 90 Kg
Specifications
- Maximum Capacity (dry weight)90 Kg
- Tumbler Depth42" / 106.7 cm
- Tumbler/Drive Motor3 hp / 2.24 kW
- Gas Heat Input650,000 Btu/hr / 163,810 kcal/hr
- Exhaust Connection Diameter20" / 50.8 cm
- Tumbler Diameter62-1/2" / 158.75 cm
- Tumbler Volume74.5 cu ft / 2,109.60 L
- Door Opening36-3/4" W x 43" H
- Airflow (Gas, 50/60 Hz)5,300 cfm / 150.08 cmm
- Steam Consumption890 lb/hr / 404.5 kg/hr
