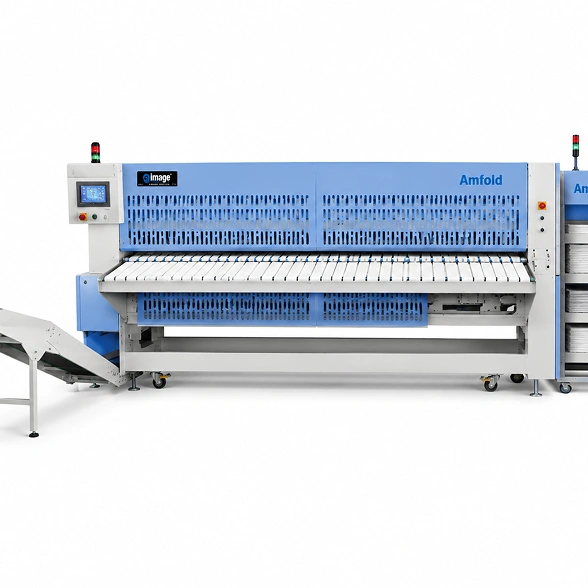

Image Automatic Single Lane Folder showing timing belt cross fold section, PLC touch screen control panel, and Amstack-D automatic stacking unit

Automatic Single Lane Folder

The Image Automatic Single Lane Folder is an automatic flatwork folder built for high-volume industrial laundry finishing lines, processing sheets, table linen, draw sheets, and similar flatwork items at speeds from 8 to 55 m/min and throughput of up to 1800 pieces per hour. Operating in single lane with 2 primary folds and up to 3 cross folds, all executed by timing belt-driven mechanisms for precise, consistent folding across every cycle.

Brand : Image

Model Number : Amfold-E with Amstack C/D

enquire now Download brochure

Specifications

Production Speed8 to 55 m/min
Primary Folds2
Max. Sheet Size (1 lane)3.3 m x working width
Max. Small Piece (multilane)1.3 m x lane width
Pneumatic Pressure6 to 10 bar

ThroughputUp to 1800 pieces/hour
Cross FoldsUp to 3
Min. Sheet Size (1 lane)0.9 m x 0.9 m
Electrical Supply220/380/415V / 50Hz / 3Ph
Amstack-D Stack CountProgrammable 1 to 18 pieces
