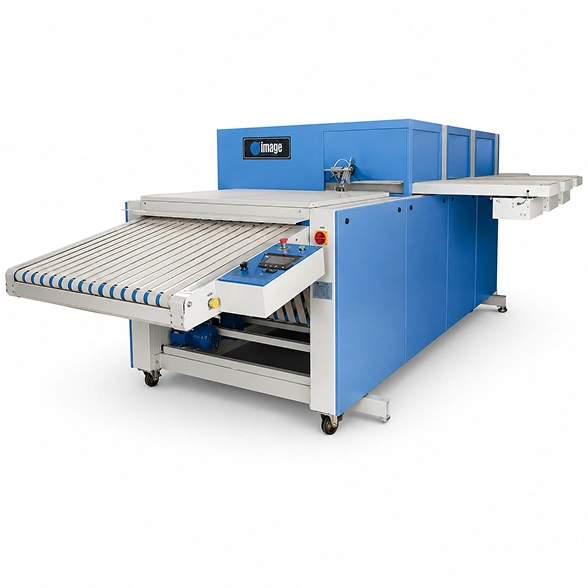

Image STF towel folding and stacking  machine showing belt reverse fold conveyor, cross fold  section, and multi-stack output trays
Image STF towel folding and stacking  machine showing belt reverse fold conveyor, cross fold  section, and multi-stack output trays
Image STF towel folding and stacking  machine showing belt reverse fold conveyor, cross fold  section, and multi-stack output trays

Automatic Towel Folder

The Image Automatic Towel Folder is an automatic towel folder and stacker built for high-throughput industrial laundry operations in hotels, hospitals, and institutional facilities processing large daily volumes of towels. Its belt reverse fold mechanism executes the first and second length folds, followed by a combined cross fold and automatic stacking in a single continuous pass at 35 m/min.

Brand : Image

Model Number :  STF

Specifications

  • Speed35 m/min
  • Min. Towel Size400 mm x 400 mm
  • Number of Stacks1, 2, or 3
  • Power2.5 kW / Fuses 10A
  • Air Consumption5000 NL / 1000 towels
  • Max. Towel Size1800 mm x 1000 mm
  • Folding MethodBelt reverse fold (length) + cross fold + stack
  • Electrical Supply3 x 400V + N + PE / 50 Hz
  • Pneumatic Pressure6 to 10 bar
  • Noise Level75 dBA
