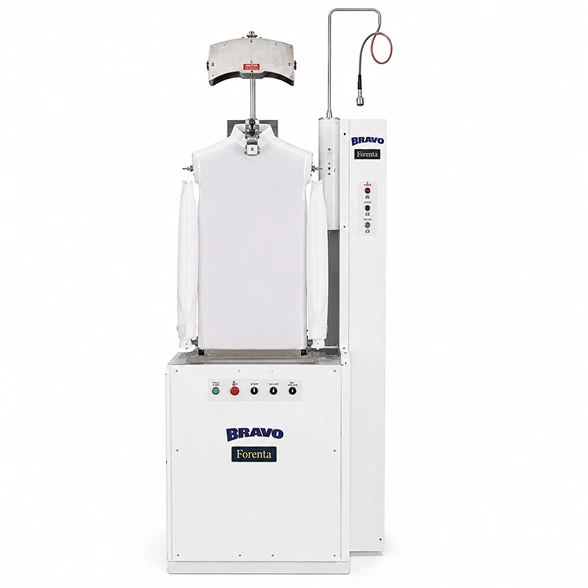

Forenta 610SBV Bravo shirt press showing heated buck, pre-inflation side air bags, vacuum hold-down system, and taller head configuration for large shirt sizes

Forenta 610SBV Bravo Cabinet Shirt Press

The Forenta 610SBV is a single buck cabinet shirt press from the Bravo series, engineered for consistent, high-quality shirt body finishing across a wide size range from 14.5 to 20. Heated bucks accelerate drying time and prevent chemical residue build-up on the buck surface, extending pad life and improving finish consistency over time. Taller heads and bucks are designed specifically to accommodate larger shirt sizes that standard presses cannot handle effectively.

Brand : Forenta

Model Number : 610SBV

enquire now Download brochure

Specifications

Buck ConfigurationSingle buck with vacuum hold-down
Steam Outlet1/2" NPT
Steam Consumption51.8 lb/hr / 23.4 kg/hr / 1.5 BHP
Air Consumption per Shirt4.1 cu ft / 116 L (at 85 PSIG)
Shipping Weight1900 lb / 862 kg

Steam Inlet1/2" NPT
Recommended Steam Pressure100 to 125 PSIG / 689 to 862 kPa
Compressed Air3/8" NPT, 85 PSIG / 586 kPa
Electrical Connection120V 50/60Hz 1PH 1.25A / 230V 1PH / 460V 3PH
Dimensions (A x B)30" x 17" / 762 x 432 mm
