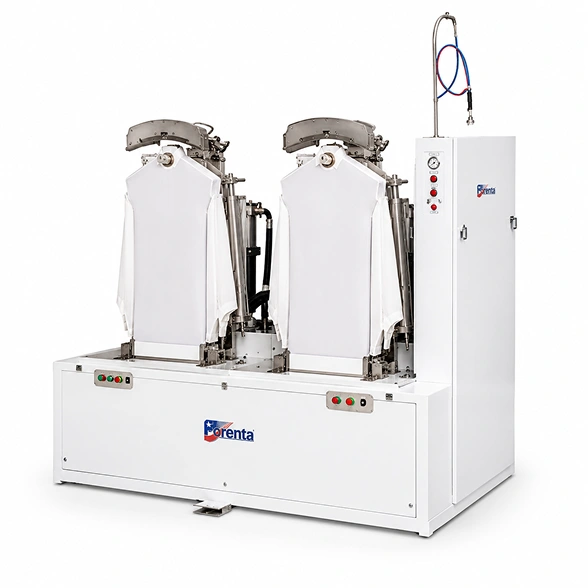

Forenta 620DBV Double Buck Shirt Press
The Forenta 620DBV is a double buck shirt press with contoured pressing heads, built for high-volume shirt finishing operations where two operators work the line simultaneously to maximise throughput. Both bucks transfer simultaneously, allowing one operator to dress a shirt while the other is being pressed, eliminating downtime between cycles and significantly increasing production rate. Shirts are dressed on both bucks from the same operator position, and vacuum hold-down on each buck keeps the garment firmly in place for consistent, mark-free results.
Brand : Forenta
Model Number : 620DBV
Specifications
- Head TypeContoured heads
- Steam Outlet1/2" NPT (total of 3 outlets)
- Steam Consumption51.8 lb/hr / 23.4 kg/hr / 1.5 BHP
- Air Consumption per Shirt1.3 cu ft / 0.04 m³ (at 85 PSIG)
- Shipping Weight2200 lb / 998 kg
- Steam Inlet1" NPT
- Recommended Steam Pressure100 to 125 PSIG / 689 to 862 kPa
- Compressed Air3/8" NPT, 85 PSIG / 586 kPa
- Electrical Connection208 to 230V 3PH 60Hz, 22.5A, 5.2 kW
- Water Connection (spray)1/4" NPT
