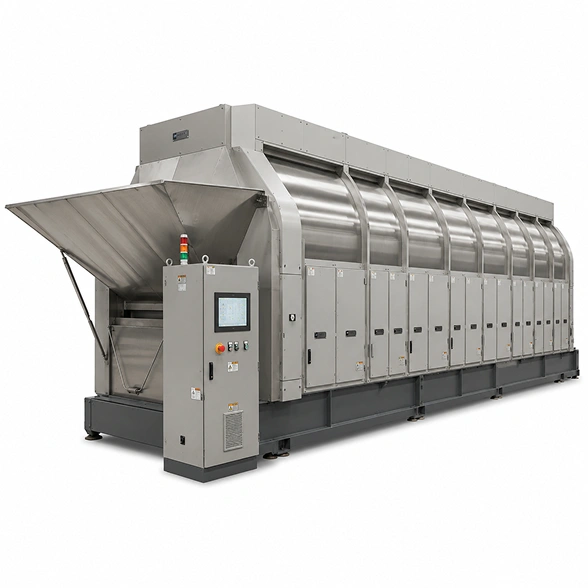

Image XPW-60 X-Power continuous batch washer showing multi-compartment drum layout, lye box zones, and touch screen control panel
Image XPW-60 X-Power continuous batch washer showing multi-compartment drum layout, lye box zones, and touch screen control panel
Image XPW-60 X-Power continuous batch washer showing multi-compartment drum layout, lye box zones, and touch screen control panel

60 Kg Continuous Batch Washer

The Image XPW-60 is a heavy-duty continuous batch washer from the X-Power series, available in configurations of 7 to 16 compartments to match plant throughput requirements ranging from 840 kg to 1920 kg per hour. The machine operates on a bottom transfer principle, pushing linen gently from one compartment to the next after each cycle without lifting, ensuring safe and mild handling across all fabric types and soil categories. Both inner and outer drums are fabricated in stainless steel as standard, with a double-drum design that maintains consistent mechanical action and hygiene compliance across every compartment.

Brand : Image

Model Number :  XPW-60 X

Capacity :  840 to 1920 kg/hr

Specifications

  • Compartment Range7 to 16 compartments
  • Cycle Time Range1.9 to 4.3 min
  • Machine Height2966 mm (116.77")
  • Drum Diameter1800 mm (70.86")
  • Water Consumption6 to 8 L/kg dry linen
  • Hourly Capacity840 to 1920 kg/hr (30 min washtime)
  • Machine Width2470 mm (97.24")
  • Machine Depth Range7980 mm to 14280 mm
  • Drive Motor15 to 22 kW (20 to 30 HP)
  • Steam Connection63.5 mm / 2.5" flange
