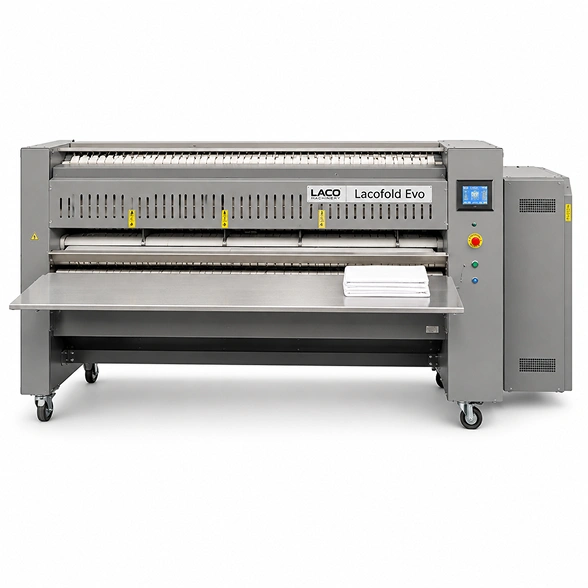

LACO Lacofold Evo 1750/2000 folding machine showing 2-lane folding section, air blast system, and 600 mm receiving table

Lacofold Evo 1750/2000 Automatic Folding Machine

Designed for compact flatwork ironer lines, the Lacofold Evo 1750/2000 handles linen widths up to 2000 mm across 1 or 2 lanes. Pieces ranging from 0.5 m to 3.2 m are processed with up to 3 primary length folds per pass, delivered through an air-blast system where fold pressure and timing are independently programmable for each cycle. Built for precision and consistency, the Lacofold Evo 1750/2000 fits seamlessly into high-throughput flat work finishing lines.

Brand : Laco

Model Number : Lacofold Evo 1750/2000

enquire now Download brochure

Specifications

Working Width1750 mm to 2000 mm
Primary FoldsUp to 3 longitudinal folds
Max. Folding Piece3.2 m / 125"
Compressed Air Consumption300 L/min / 80 gal/min
Electrical Connection230V / 50Hz

Number of Lanes1 to 2
Min. Folding Piece0.5 m / 20"
Compressed Air Pressure6 bar / 87 psi
Dimensions (L x D x H)2710 x 1580 x 1700 mm
Weight565 kg / 1240 lb
