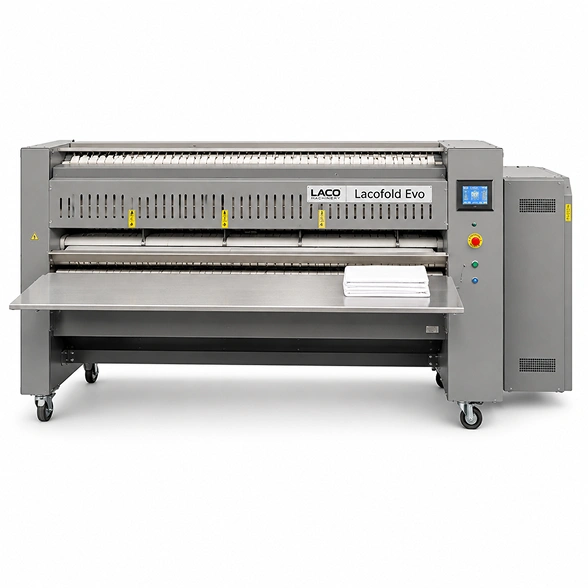

Lacofold Evo 3000 Automatic Folding Machine
The Lacofold Evo 3000 is an automatic longitudinal folding machine built for high-volume flatwork ironer lines processing linen in widths up to 3000 mm. With up to 4 simultaneous lane operation, it significantly increases throughput for smaller items such as pillowcases, napkins, and small sheets, while handling full-width sheets up to 3.2 m long in single-lane mode.
Brand : Laco
Model Number : Lacofold Evo 3000
Specifications
- Working Width3000 mm
- Primary FoldsUp to 3 longitudinal folds
- Max. Folding Piece3.2 m / 125"
- Compressed Air Consumption400 L/min / 106 gal/min
- Electrical Connection230V / 50Hz
- Number of Lanes1 to 4
- Min. Folding Piece0.5 m / 20"
- Compressed Air Pressure6 bar / 87 psi
- Dimensions (L x D x H)3710 x 1580 x 1700 mm
- Weight625 kg / 1375 lb
