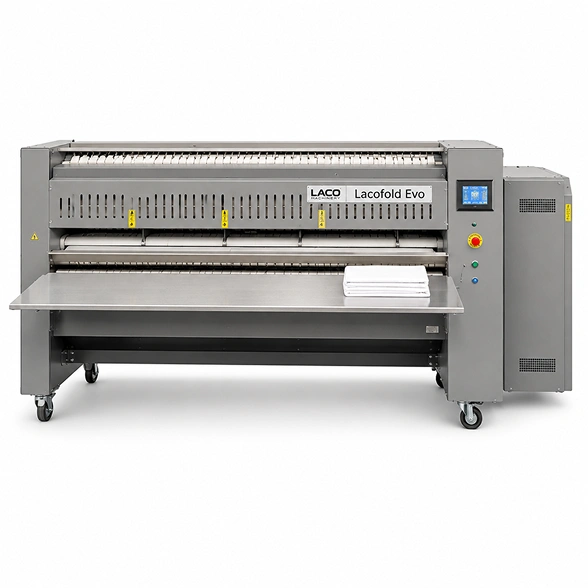

Lacofold Evo 3300 Automatic Folding Machine
The Lacofold Evo 3300 is the widest and highest-capacity model in the Lacofold Evo range, designed for the largest industrial flatwork ironer lines processing linen in widths up to 3300 mm. With 1 to 4 simultaneous lane operation and pieces handled from 0.5 m to 3.2 m, it maximises throughput for high-volume central laundry operations running continuous shifts.
Brand : Laco
Model Number : Lacofold Evo 3300
Specifications
- Working Width3300 mm
- Primary FoldsUp to 3 longitudinal folds
- Max. Folding Piece3.2 m / 125"
- Compressed Air Consumption450 L/min / 120 gal/min
- Electrical Connection230V / 50Hz
- Number of Lanes1 to 4
- Min. Folding Piece0.5 m / 20"
- Compressed Air Pressure6 bar / 87 psi
- Dimensions (L x D x H)4010 x 1580 x 1700 mm
- Weight680 kg / 1500 lb
