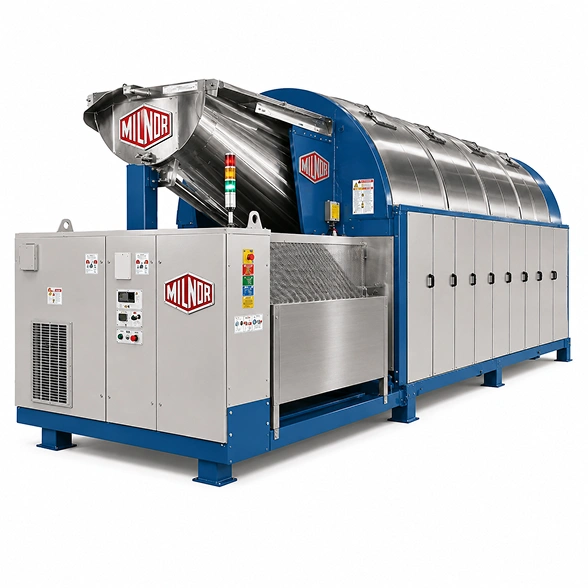

Milnor PBW 76039 Pulse Flow Batch Washer
The Milnor PBW 76039 is a heavy-duty sectional continuous batch washer featuring the same PulseFlow Technology platform as the 76028, scaled up to a 39-inch cylinder depth for greater per-cycle capacity without any compromise in wash quality. The machine supports configurations from 3 to 12 modules, giving plant managers the flexibility to match line length to available floor space and throughput requirements.
Brand : Milnor
Model Number : PBW 76039
Capacity : 150 lbs / 68 kg
Specifications
- Rated Capacity150 lbs (68 kg) per module
- Cylinder Depth39" (990 mm)
- Overall Height9'0" (2760 mm)
- Water ConsumptionAs low as 0.3 gal/lb (2.5 L/kg)
- Steam Connection2" (50.8 mm)
- Cylinder Diameter76" (1930 mm)
- Overall Width8'4" (2550 mm)
- Module Range3 to 12 modules (20'3" to 53'11")
- Water Manifold Inlet / Tank3" / 2" (76 / 50 mm)
- Air Connection1/2" (12.7 mm)
