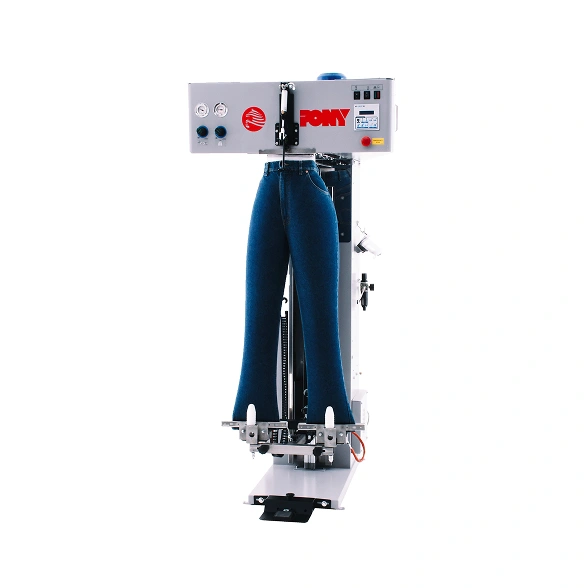

MPT-DL Pneumatic Jeans And Denim Topper
Industrial Jeans And Denim Topper Built For Facilities Processing High Volumes Of Shaped And Contoured Trouser Cuts That Standard Toppers Cannot Handle Effectively. Special Anatomic Side Paddles Perfectly Mould Around The Trouser Waist Following The Exact Cut Of Each Garment. Interchangeable Anatomic Forms Allow Rapid Size Changeovers Without Machine Downtime. Pneumatic Leg Trolley With Independent Pivoting Clamps And Optional Photocell Enables Automatic Hem Alignment And Cycle Start For Maximum Throughput. Microprocessor-Controlled Cycles With Orientable Lateral Console Keep Operator Posture Correct Across Extended Production Shifts.
Brand : Pony
Model Number : MPT-DL
Specifications
- Machine Dimensions1220 × 1340 × 2100 mm
- Fan Motor1.27 kW
- Steam Working Pressure4-6 bar
- Air Inlet1/4"
- Air Consumption13 Nl/cycle
- Power Supply400V/3+N, 50Hz
- Steam Inlet1/2"
- Steam Consumption13-20 kg/h
- Air Working Pressure7 bar
- Net Weight185 kg
